Omron SR

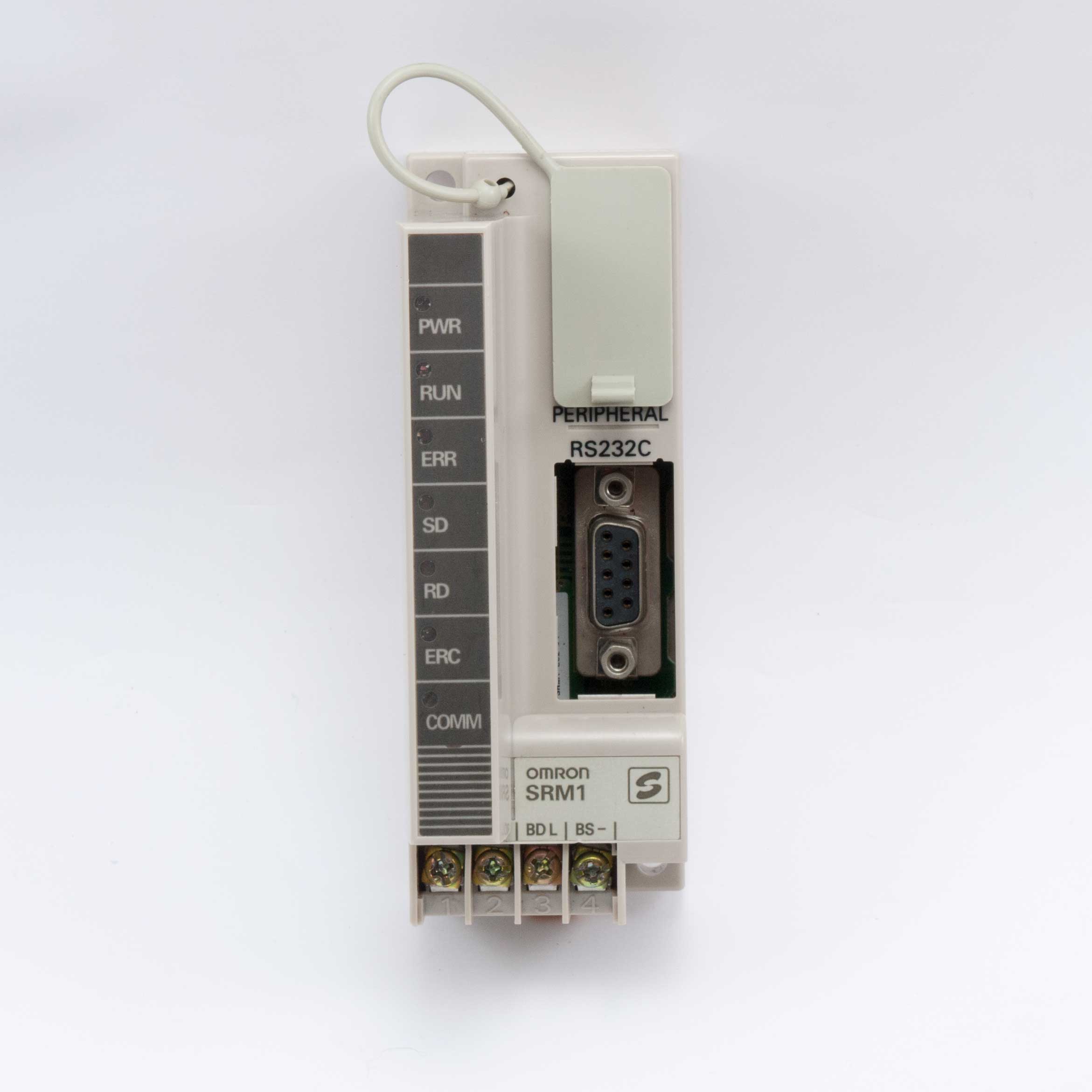

Omron SRM1-C02-V2 Compobus PLC Master Control Unit The SRM1’s high-speed distributed I/O controller is a revolutionary design in PLC control. The SRM1 places all the processing power and control in the ultra compact master unit and allows you to distribute up to 256 points of I/O via a twisted pair network. You can create a distributed I/O network with up to 32 nodes at distances up to 500 meters away.This allows for reduced cabling costs, increased flexibility, lower system costs, and optimum efficiency when I/O has to be located away from the CPU. Distributed I/O system supports up to 256 I/O points SRM1 master communicates with up to 32 nodes at up to 500 meters away Twisted pair network allows easy addition of devices and reduces cabling costs High-speed communications at up to 750 kbps Multiple remote I/O options includingdiscrete and analog I/O devices 4k Program memory; 2 k Data memory UL/CSA/CE approvals

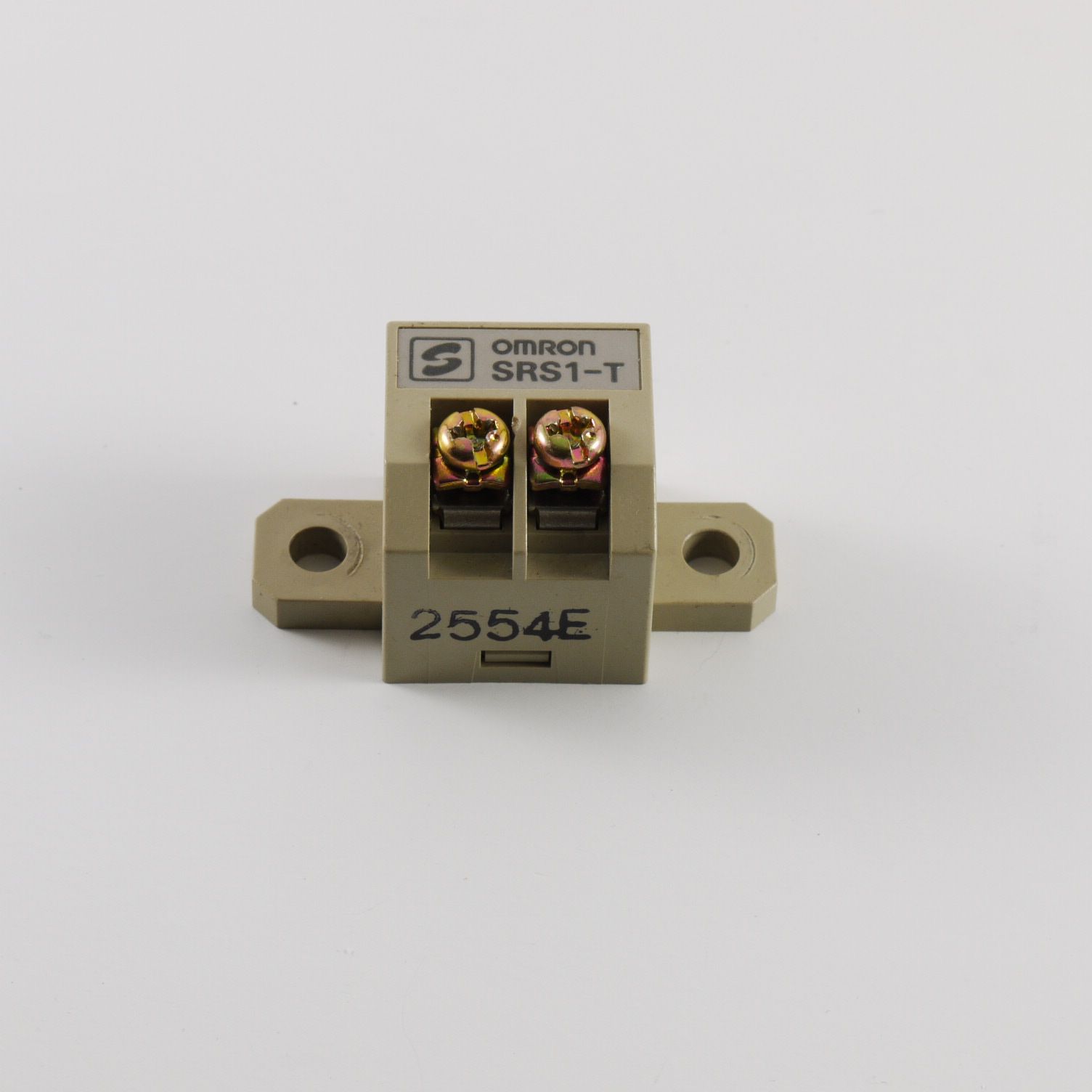

Omron SRS1-T Compobus Terminator Resistor

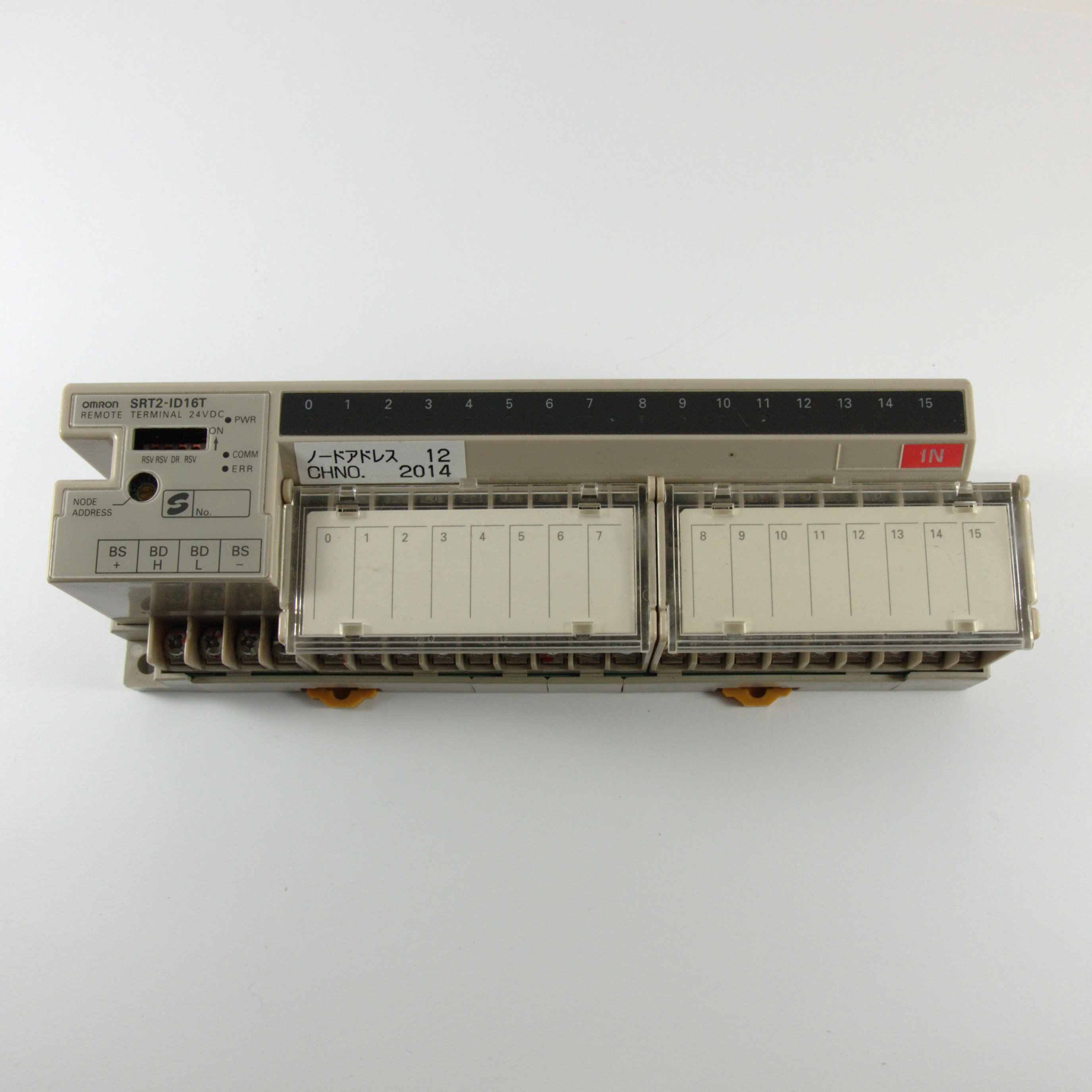

Omron SRT2-ID16T PLC Compobus Remote Input Terminal NPN Compobus Remote I/O Terminal , Transistor Outputs With 3-Tier Terminal Block , 16 Inputs , NPN Incorporates easy-to-wire terminals each connecting to a single wire. Reduces designing and wiring effort. Incorporates a removable circuit block of cassette construction.

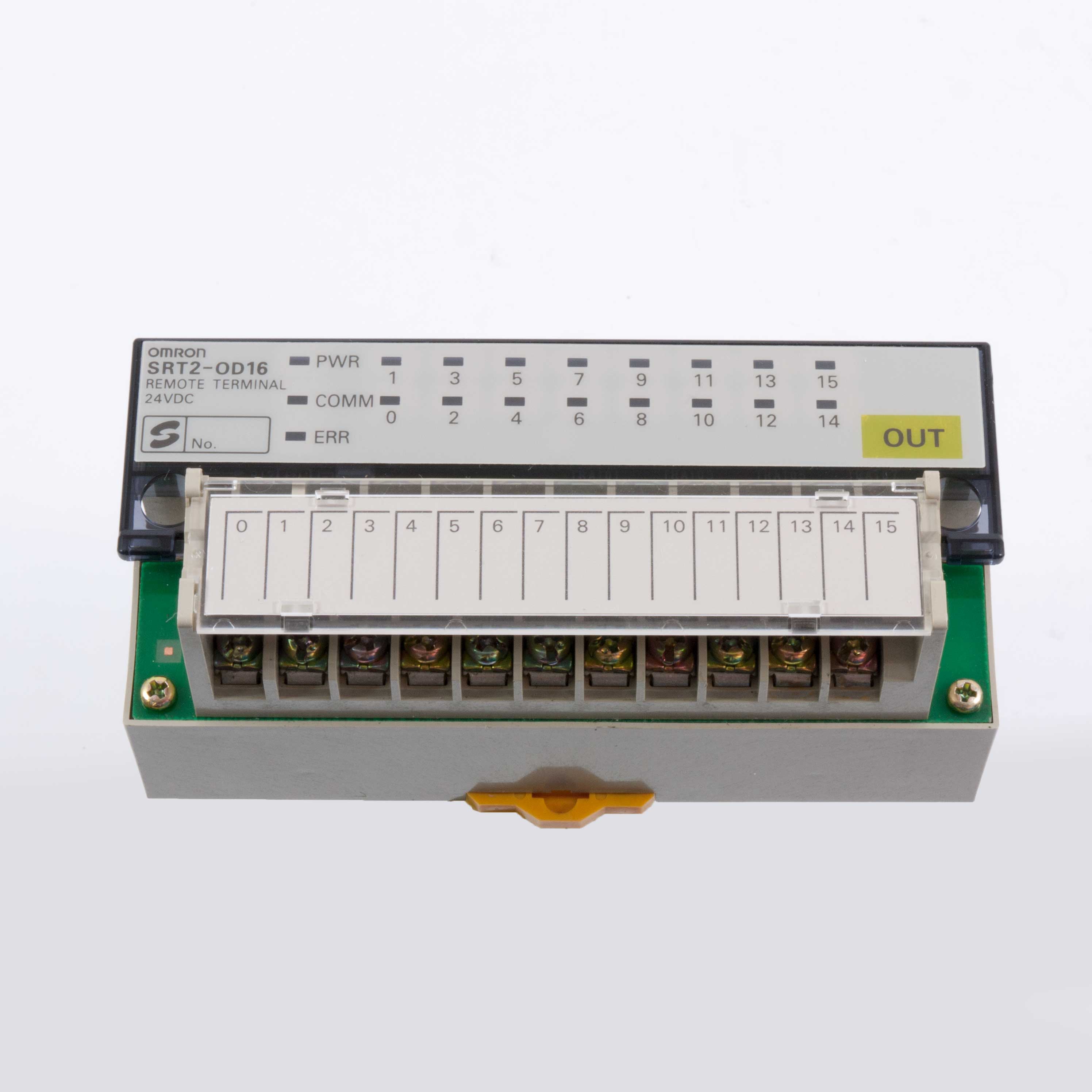

Omron SRT2-OD16 Compobus/S NPN Transistor Output Terminal Block Ultra-compact CompoBus/S NPN Transistor I/O Terminal Blocks SRT2 models support both high-speed communications (750 kbps) and long-distance communications (500 m) systems, switch selected Two independent power supplies can be used because the I/O terminals are isolated from the internal circuits DIN track and screw mounting

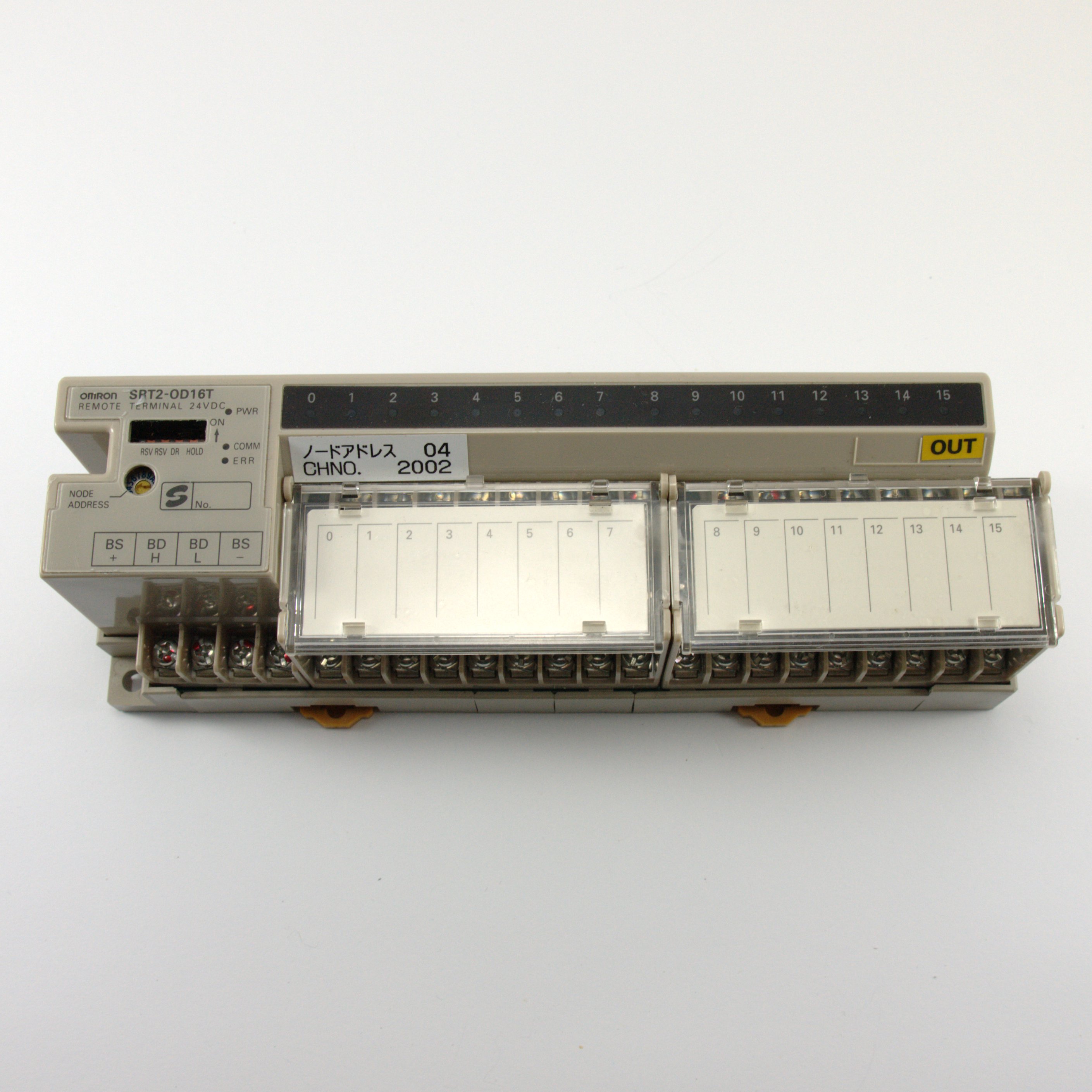

Omron SRT2-OD16T PLC Compobus Remote Output Terminal NPN Compobus Remote I/O Terminal , Transistor Outputs With 3-Tier Terminal Block , 16 Outputs , NPN Incorporates easy-to-wire terminals each connecting to a single wire.Reduces designing and wiring effort.Incorporates a removable circuit block of cassette construction.
