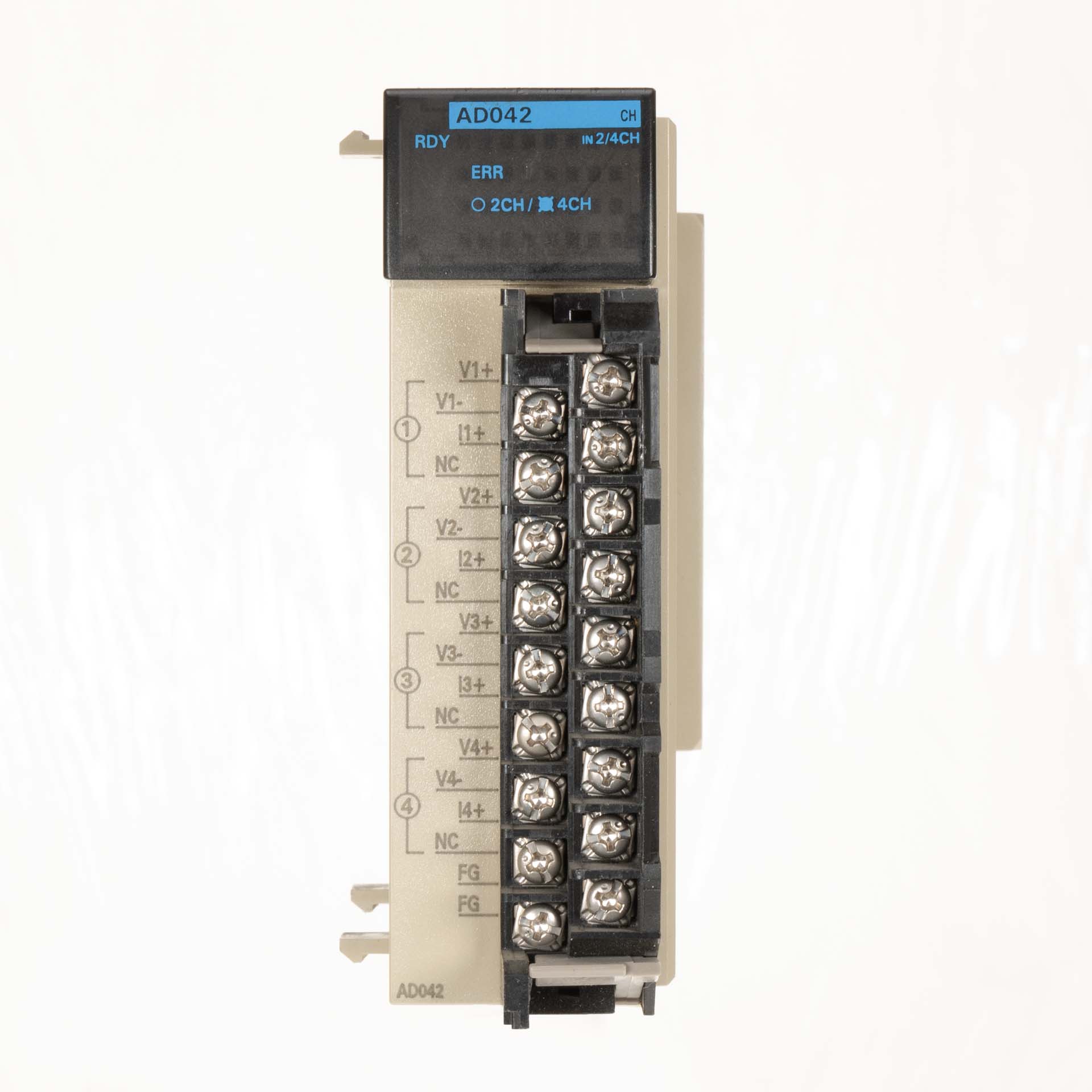

OMRON CQM1-AD042 Analog input unitTestedNo Plastic CoverSlight Discoloration, some dust SpecificationsNumber of inputs : 4Input ranges : -10 V to +10 V, 0 V to 10 V, 0 V to 5 V, 0 mA to 20 mAResolution : 12 bitsAccuracy : 25 °C 0.5%, 0 to 55 °C 1 %Conversion speed : 1.2 ms / channelInsulation : 500 V AC between output and PLC busCurrent consumption : 170 mA at 5 V DCInput type : DifferentialInput impedance : voltage 1 MW, current 250 WPower supply : internal DC/DC converter

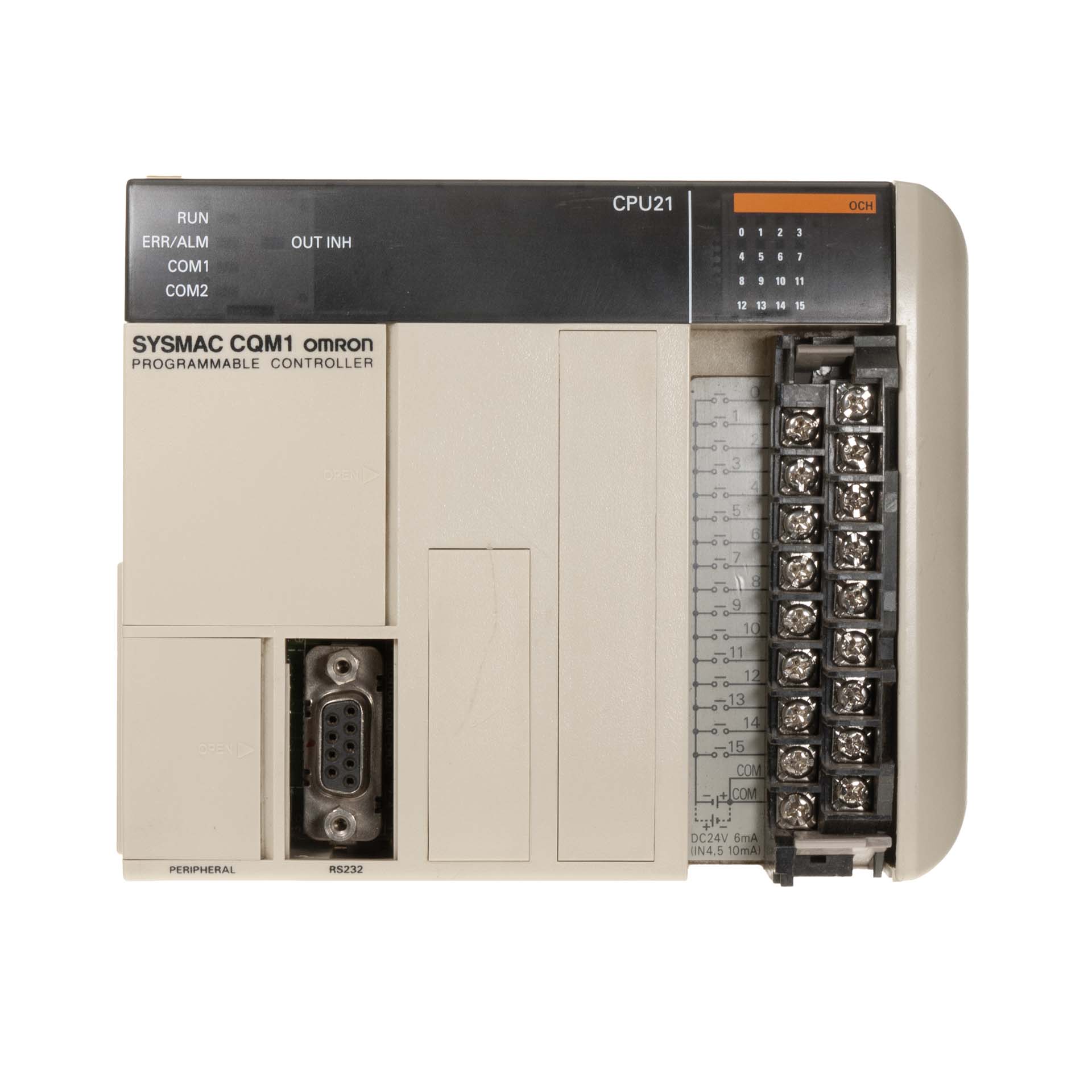

Omron CQM1-CPU21-E PLC Programmable Controller CPU Unitused, scratches, usage marksTestedThe CQM1 is a compact, high-speed PC composed of a Power Supply Unit, a CPU Unit, and I/O Units. All of these Units connect at the sides to form a single PC, which is normally mounted to a DIN track.All CQM1 CPU Units, except for the CQM1-CPU11-E, are equipped with an RS-232C port that can be connecteddirectly toa host computer, another CQM1, or other serial devices.Main FeaturesMaximum I/O points 128 ptsProgram capacity 3.2K wordsDM capacity 1K wordsRS-232C port
Omron CQM1-ID212 24-VDC Input UnitInput Voltage 24 VDC +10%/--15%Input Impedance 3.9 kΩInput Current 6 mA typical (at 24 VDC)ON Voltage 14.4 VDC min.OFF Voltage 5.0 VDC max.No. of Inputs 16 points (16 points/common, 1 circuit)Missing Plastic Lid

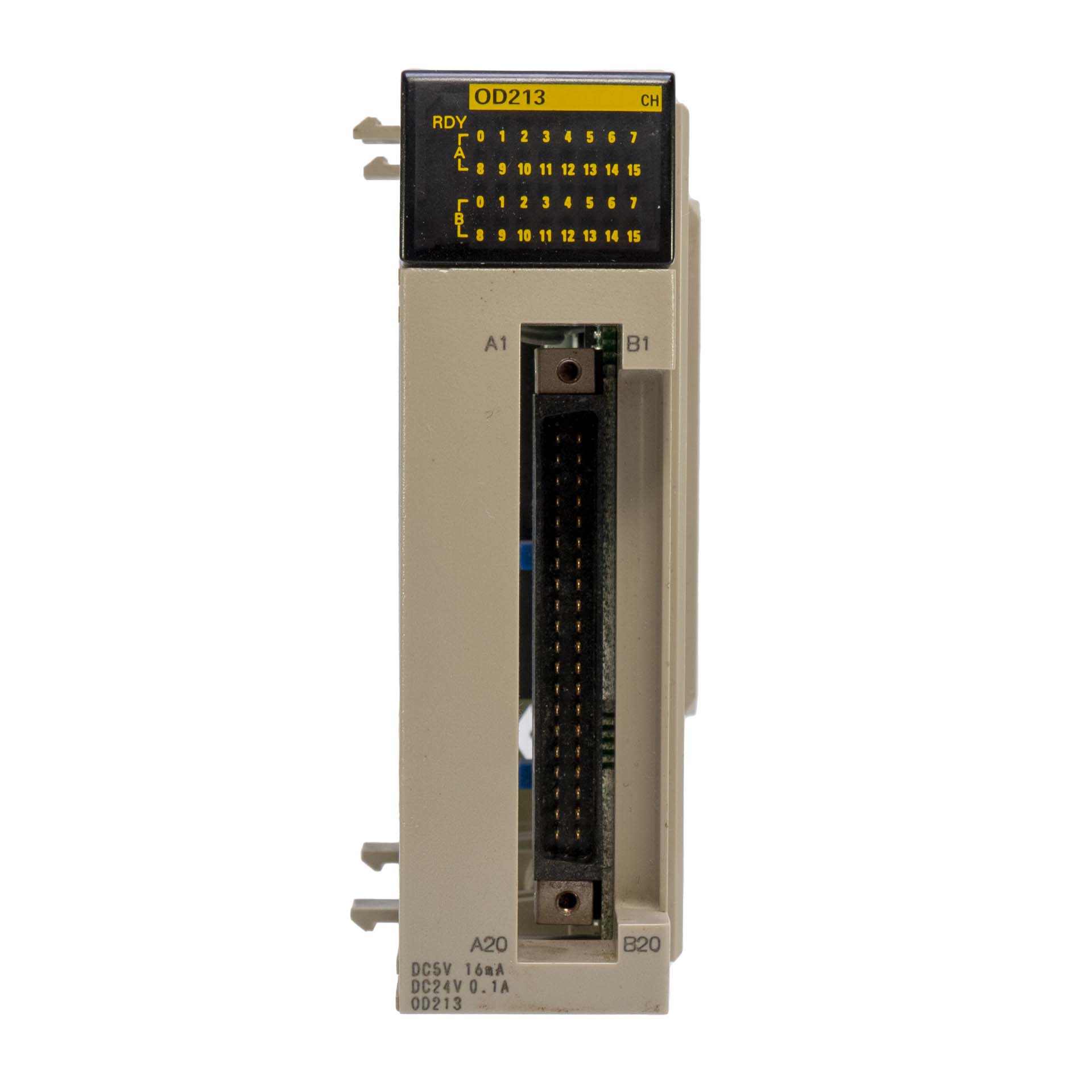

Omron CQM1-OD213 Transistor Output Module 32pts NPNNo. of Outputs : 32 points (32 points/common, 1 circuit)Max. Switching Capacity : 16 mA at 4.5 VDC to 100 mA at 26.4 V
Omron CQM1-PA203 PLC Power Supply Supply voltage: 100 to 240 VAC, 50/60 Hz Operating voltage range: 85 to 264 VAC Operating frequency range: 47 to 63 Hz Output capacity 5 VDC: 3.6 A (18 W) Power consumption: 60 VA max.

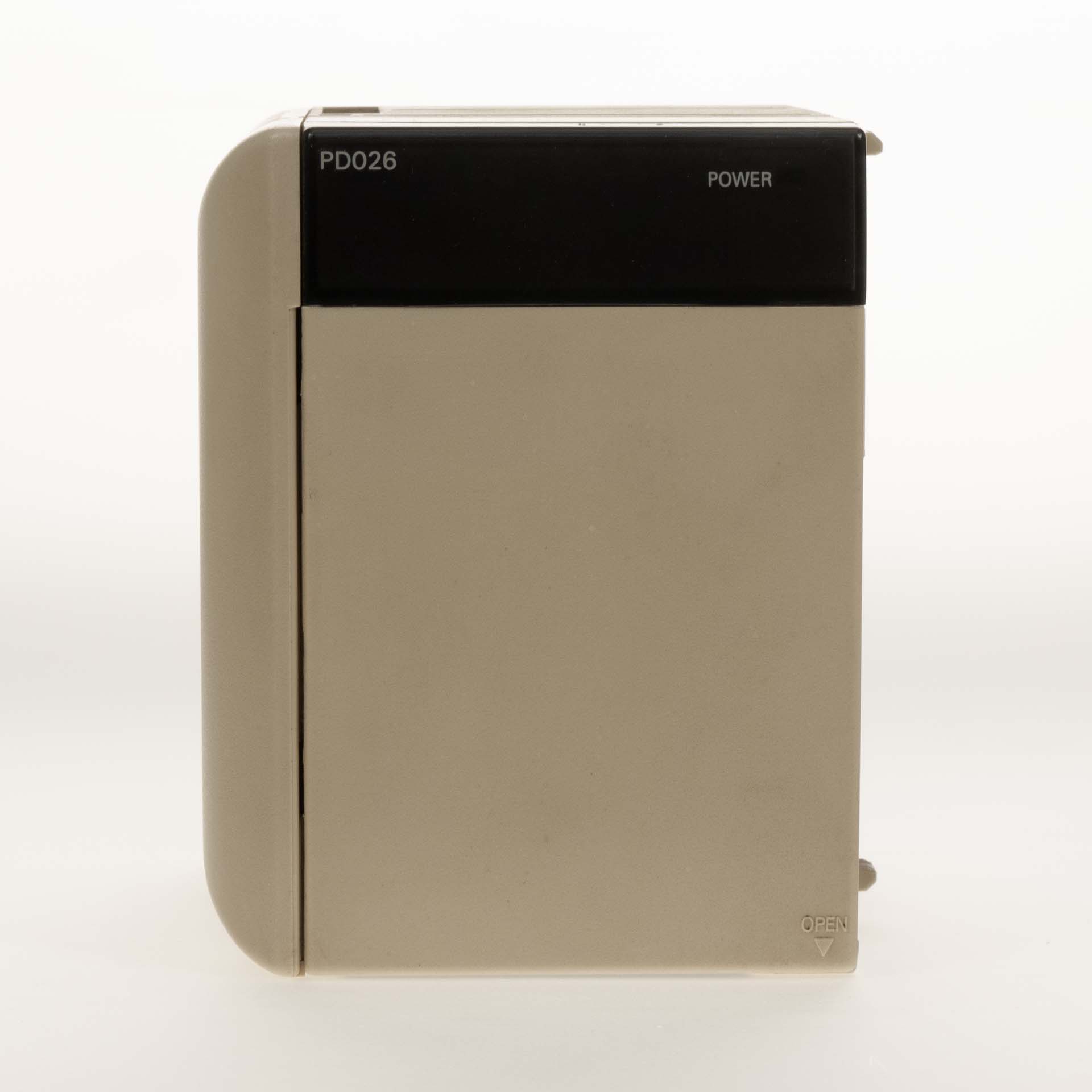

Omron CQM1-PD026 24V DC 50W Power Supply for CQM1 Series PLCCosmetically "B"Supply voltage 24VOperating voltage range 20 to 28 VDC Power consumption 50W Max Inrush current 30A Max Output capacity 5 VDC: 6 A (30 W)
Compobus/S Master Unit for CQM1A maximum of 128 I/O points available (Possible to set 32, 64, or 128 I/O points).Connects to a maximum of 16/32 Slaves.Communications cycle time: 0.5 ms max. (at baudrate 750 kbps).Communications distance: Extended to 500 m max. (at baud rate 93.75 kbps).Connection to Analog Terminals now supported
Omron CQM1-TC001 Temperature Control Unit for J K ThermocoupleFully TestedNPNMissing plastic cover

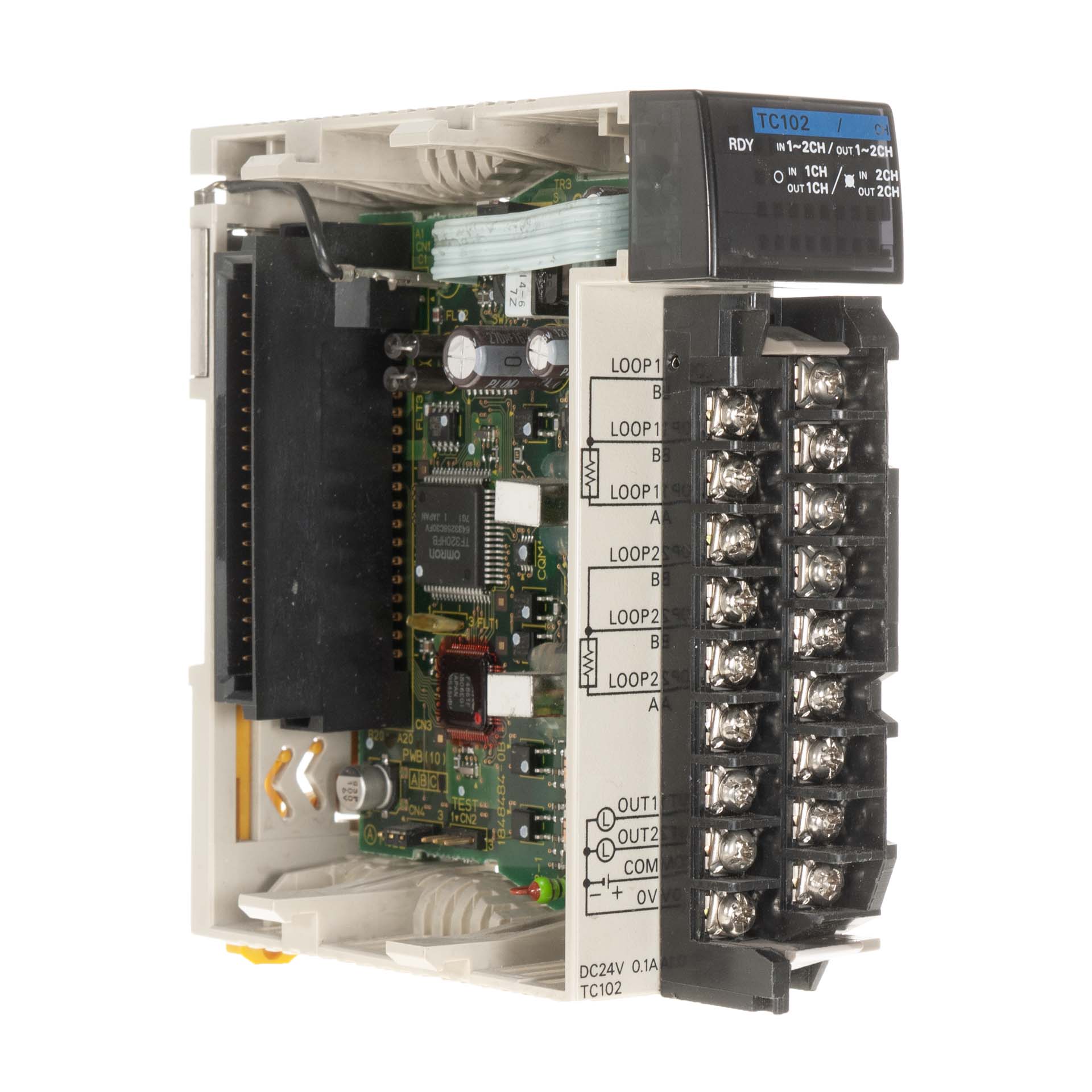

Omron CQM1-TC102 Temperature Control Unit PT100Fully TestedFeaturesThe PID with advanced feed-forward circuitry (2 degrees of freedom) of the CQM1-TC00@/TC10@ assures stable temperature control. The Units can be set to ON/OFF control.CQM1-TC00@ Temperature Control Units for thermocouples and CQM1-TC10@ Temperature Control Units for platinum resistance thermometers are available. Each Temperature Control Unit can be used for two-loop temperature control.Input Sensors and set point rangesSensors used with platinum resistance thermometersJPt100: –99.9 to 450.0 °C (–99.9 to 800.0 °F)Pt100: –99.9 to 450.0 °C (–99.9 to 800.0 °F)Control outputPNP output with short-circuit protectionPower supply voltage: 24 VDC +10%/–15%Maximum switching capacity: 100 mA per outputControl ModeON/OFF or advanced PID control (2 degrees of freedom)
Omron CQM1H-CPU51 PLC CPU UnitTestedNo CoversThe CQM1H’s rack-less modular design lets you customize your control system by adding “inner boards” for advanced functions, as well as specialized I/O and communications modules. CQM1H offers the most flexibility of all PLC systems in its class.4 different base CPUs to choose from; 16 DC inputs built in; expands up to 512 pointsNo separate backplane requiredInner Boards allow “customized” configuration of the CPUSerial communications inner board supports protocol macro feature for communication with third-party serial devicesSupports all existing and new CQM1 I/O and specialized I/O modulesOptional memory cassettes allow backup of sensitive data, provides a real-time clockControllerLink network transmits 8 kword data packets at up to 2 Mbps; 32 nodesAdvanced instruction set includes PID, floating pointCompoBus/S, SYSMAC BUS and AS-interface masters support remote I/O7.2 kwords of program memoryA495
Omron CQM1H-IC101 I/O Control UnitSlight plastic discoloration
